Virtual machine is automatically deployed after approval for request of registration on the cloud management portal. However, RDB and SLB are not automatically deployed after the approval.

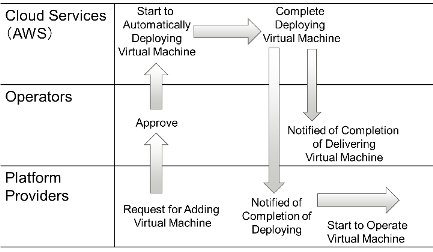

Figure A.1 Procedure for startup of operating virtual machine

If RDB or SLB is requested to register at the same time as virtual machine, operators setup the RDB or SLB on the cloud portal (AWS console), then deploying RDB or SLB is completed.

After that, operators notify the service applicant belonging to platform providers, then platform providers can start to operating RDB or SLB.

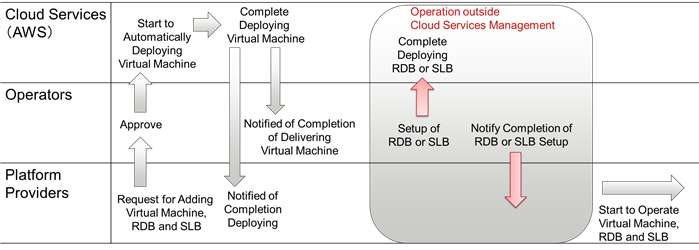

Figure A.2 Procedure for startup of operating virtual machine, RDB and SLB together
